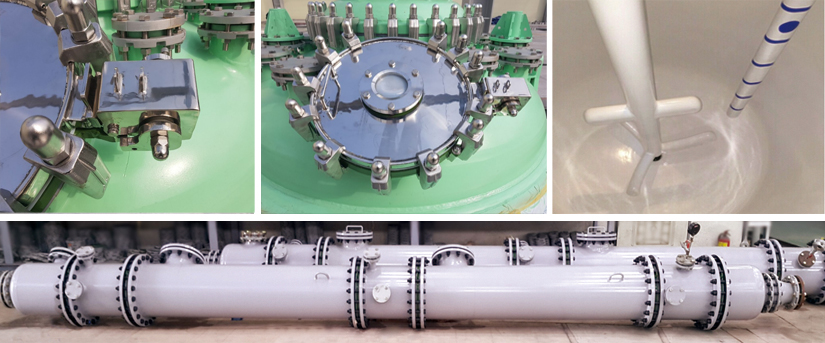

Reactor / 反応器


S型反応器は最も広く使われ,反応,蒸発,抽出,溶解,精材,結晶,混合などの様々な公正に使われる。
低圧力と真空運転に適している。



360VR

Drag Button
Move the arrow left and right to return the product image to the left and right

Construction


Model No. NominalCap(ℓ) D1(㎜) D2(㎜) H(㎜) C(㎜) F(㎜) HH(㎜) S(㎜) Manhole Dia(㎜) Heating Surface(㎡) Net Weight(㎏)
JS-050 50 500 600 300 135 310 745 400 50A 0.83 300
JS-100 100 600 700 380 162 345 887 500 80A 1.21 440
JS-200 200 600 700 720 162 345 1227 500 100A 1.85 570
JS-300 300 800 900 620 212 395 1227 600 150 2.37 740
JS-400 400 800 900 800 212 395 1407 600 150 2.83 830
JS-500 500 900 1000 760 237 420 1417 600 200 3.16 930
JS-800 800 1000 1100 970 262 445 1677 750 200 4.27 1190
JS-1000 1000 1200 1350 850 312 495 1657 750 300X400 4.92 1480
JS-1500 1500 1200 1350 1300 312 495 2107 750 300X400 6.62 1820
JS-2000 2000 1400 1550 1260 364 550 2174 900 300X400 7.86 2350
JS-2500 2500 1500 1650 1350 391 575 2316 900 300X400 9 3130
JR-3000 3000 1600 1750 1420 416 815 2651 900 300X400 10.12 3680
JR-4000 4000 1700 1850 1650 441 840 2931 900 300X400 12.16 4320
JR-5000 5000 1800 1950 1850 469 890 3209 1100 400 14.22 5790
JR-6000 6000 1900 2050 1900 494 915 3309 1100 400 15.51 6300
JR-7000 7000 1900 2050 2320 494 915 3729 1100 400 18.01 7120
JR-8000 8000 2100 2250 2100 545 970 3615 1200 400 18.8 7610
JR-9000 9000 2100 2250 2400 545 980 3925 1200 400 20.88 8100
JR-10000 10000 2100 2250 2700 546 980 4226 1200 400 22.81 8700
JR-12000 12000 2250 2400 3235 603 693 4531 1200 400 27 11500
JR-15000 15000 2500 2650 2660 625 1088 4373 1200 400 28.97 12200
JR-20000 20000 2700 2850 3010 675 1138 4823 1200 500 34.29 14300
JR-25000 25000 2900 3050 3300 725 1188 5213 1200 500 40.11 17700
JR-30000 30000 3100 3250 3460 775 1238 5473 1200 500 45.23 21400
JR-40000 40000 3500 3750 3660 875 1338 5873 1200 500 54.97 29000
JR-60000~ 60000~ 4000 4150 4150 1000 1463 6613 1200 500 71.08 36000
