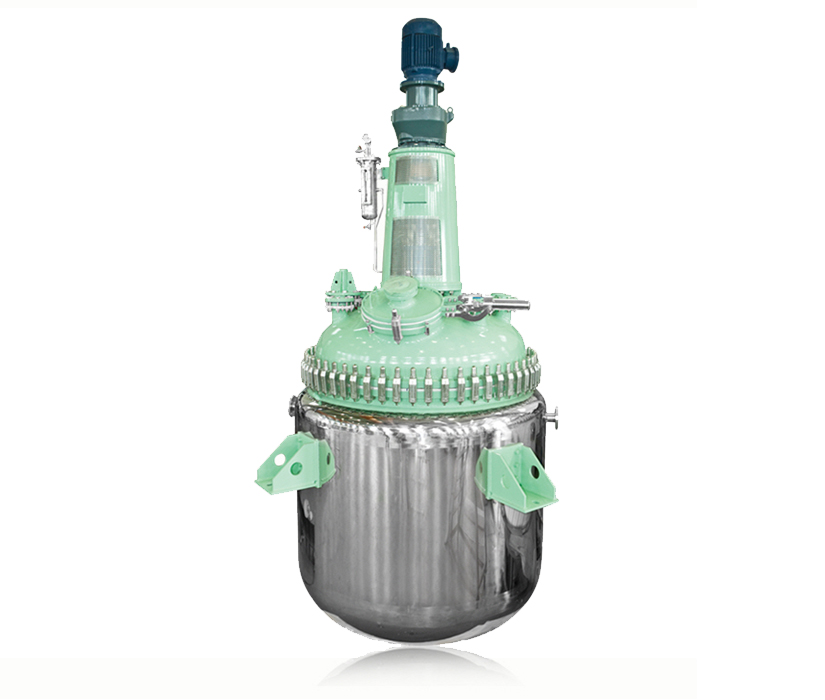

Reactor


Used in various processes such as reaction, evaporation, extraction, melting, refining, crystals, mixing, etc.
It is suitable for low pressure and vacuum operation.



360VR

Drag Button
Move the arrow left and right to return the product image to the left and right

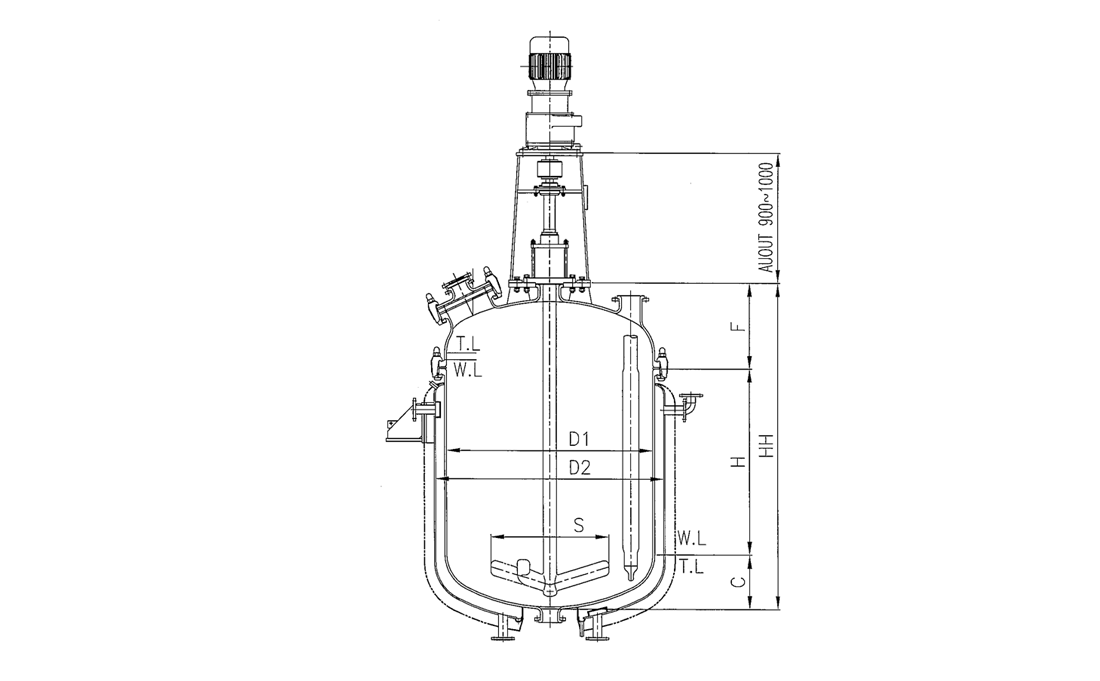

Construction

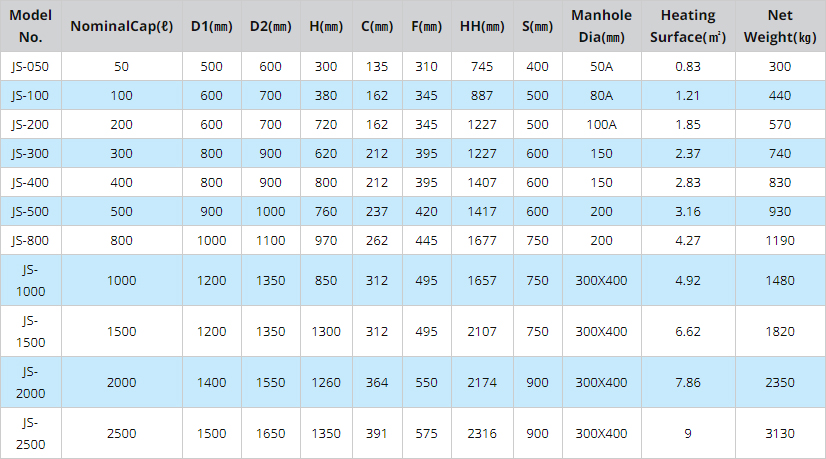

Model No. NominalCap(ℓ) D1(㎜) D2(㎜) H(㎜) C(㎜) F(㎜) HH(㎜) S(㎜) Manhole Dia(㎜) Heating Surface(㎡) Net Weight(㎏)
JS-050 50 500 600 300 135 310 745 400 50A 0.83 300
JS-100 100 600 700 380 162 345 887 500 80A 1.21 440
JS-200 200 600 700 720 162 345 1227 500 100A 1.85 570
JS-300 300 800 900 620 212 395 1227 600 150 2.37 740
JS-400 400 800 900 800 212 395 1407 600 150 2.83 830
JS-500 500 900 1000 760 237 420 1417 600 200 3.16 930
JS-800 800 1000 1100 970 262 445 1677 750 200 4.27 1190
JS-1000 1000 1200 1350 850 312 495 1657 750 300X400 4.92 1480
JS-1500 1500 1200 1350 1300 312 495 2107 750 300X400 6.62 1820
JS-2000 2000 1400 1550 1260 364 550 2174 900 300X400 7.86 2350
JS-2500 2500 1500 1650 1350 391 575 2316 900 300X400 9 3130
JR-3000 3000 1600 1750 1420 416 815 2651 900 300X400 10.12 3680
JR-4000 4000 1700 1850 1650 441 840 2931 900 300X400 12.16 4320
JR-5000 5000 1800 1950 1850 469 890 3209 1100 400 14.22 5790
JR-6000 6000 1900 2050 1900 494 915 3309 1100 400 15.51 6300
JR-7000 7000 1900 2050 2320 494 915 3729 1100 400 18.01 7120
JR-8000 8000 2100 2250 2100 545 970 3615 1200 400 18.8 7610
JR-9000 9000 2100 2250 2400 545 980 3925 1200 400 20.88 8100
JR-10000 10000 2100 2250 2700 546 980 4226 1200 400 22.81 8700
JR-12000 12000 2250 2400 3235 603 693 4531 1200 400 27 11500
JR-15000 15000 2500 2650 2660 625 1088 4373 1200 400 28.97 12200
JR-20000 20000 2700 2850 3010 675 1138 4823 1200 500 34.29 14300
JR-25000 25000 2900 3050 3300 725 1188 5213 1200 500 40.11 17700
JR-30000 30000 3100 3250 3460 775 1238 5473 1200 500 45.23 21400
JR-40000 40000 3500 3750 3660 875 1338 5873 1200 500 54.97 29000
JR-60000~ 60000~ 4000 4150 4150 1000 1463 6613 1200 500 71.08 36000
