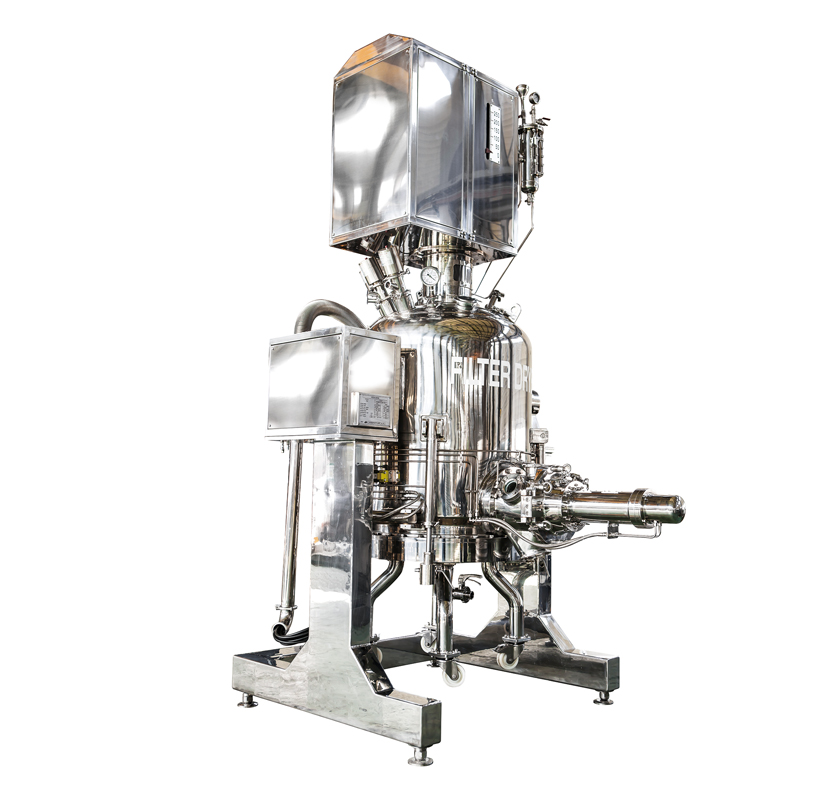

Filter Dryer A
The Filter Dryer can perform simultaneously two processes of filtration and cake drying without transferring product to the other equipment.
It consists of a heated agitator, bottom, and body and uses vacuum and pressure during the filtration process. Optional specifications include dust filters, vacuum pumps and solvent recovery systems, suitable for process of handling sensitive products or for drying very low residual humidity products.
Suitable for the process of handling sensitive products or for the drying of very low residual humidity products.
Features
- Suitable for processes where mixing, filtration, drying and cleaning are repeated several times.
- Can be adjusted to tilting 20° to facilitate product discharge.
- The heating of the jacket and the hot water circulation to the impeller improves the heat-ability.
- Improved vacuum drying efficiency by three blades
Application
- Pharmaceutical
- Chemical
- Fine Chemicals
- Agricultural Chemicals, and Etc.

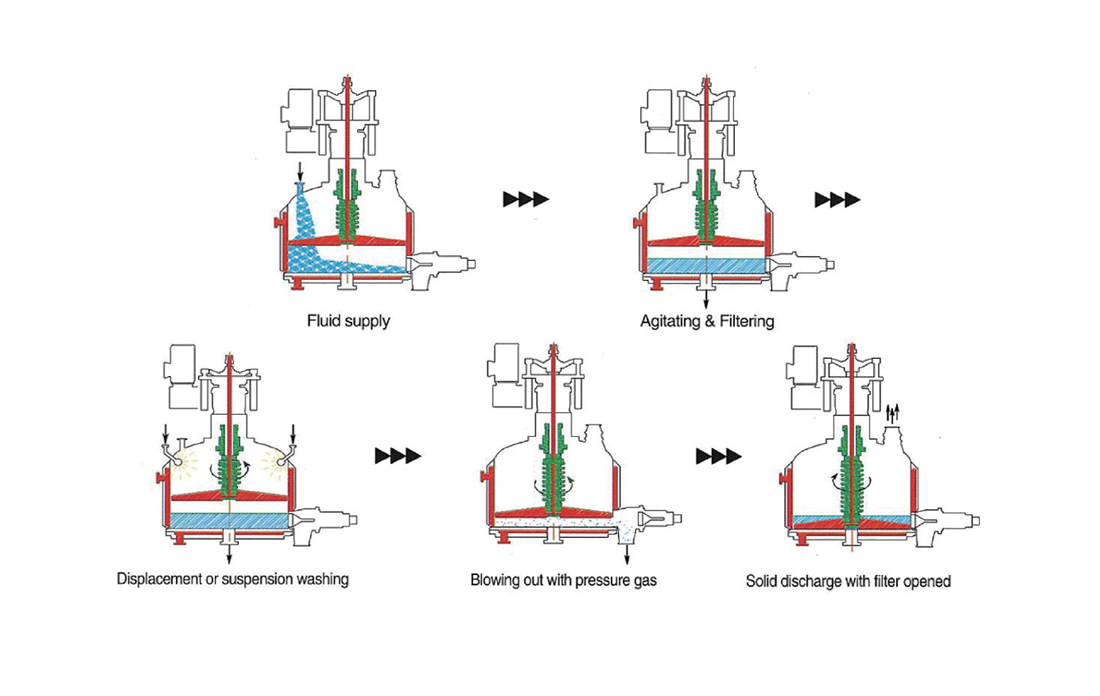

Function

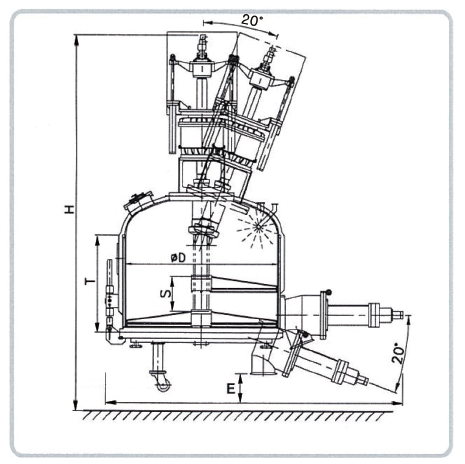

Construction

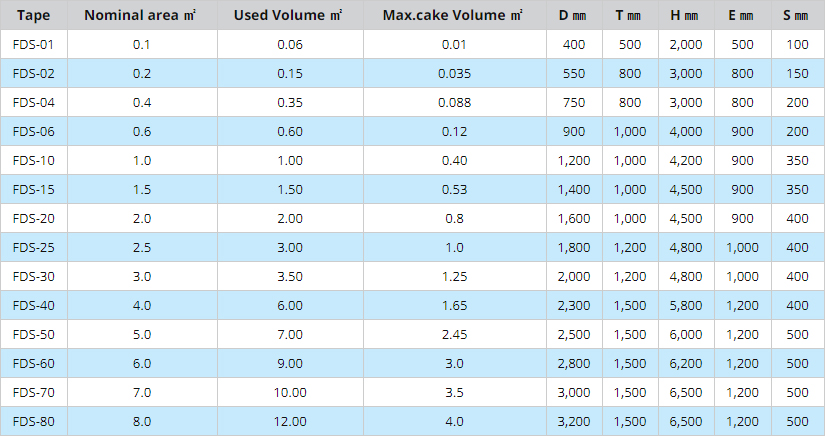

| Tape |
Nominal area ㎡ |
Used Volume ㎡ |
Max.cake Volume ㎡ |
D ㎜ |
T ㎜ |
H ㎜ |
E ㎜ |
S ㎜ |
| FDS-01 |
0.1 |
0.06 |
0.01 |
400 |
500 |
2,000 |
500 |
100 |
| FDS-02 |
0.2 |
0.15 |
0.035 |
550 |
800 |
3,000 |
800 |
150 |
| FDS-04 |
0.4 |
0.35 |
0.088 |
750 |
800 |
3,000 |
800 |
200 |
| FDS-06 |
0.6 |
0.60 |
0.12 |
900 |
1,000 |
4,000 |
900 |
200 |
| FDS-10 |
1.0 |
1.00 |
0.40 |
1,200 |
1,000 |
4,200 |
900 |
350 |
| FDS-15 |
1.5 |
1.50 |
0.53 |
1,400 |
1,000 |
4,500 |
900 |
350 |
| FDS-20 |
2.0 |
2.00 |
0.8 |
1,600 |
1,000 |
4,500 |
900 |
400 |
| FDS-25 |
2.5 |
3.00 |
1.0 |
1,800 |
1,200 |
4,800 |
1,000 |
400 |
| FDS-30 |
3.0 |
3.50 |
1.25 |
2,000 |
1,200 |
4,800 |
1,000 |
400 |
| FDS-40 |
4.0 |
6.00 |
1.65 |
2,300 |
1,500 |
5,800 |
1,200 |
400 |
| FDS-50 |
5.0 |
7.00 |
2.45 |
2,500 |
1,500 |
6,000 |
1,200 |
500 |
| FDS-60 |
6.0 |
9.00 |
3.0 |
2,800 |
1,500 |
6,200 |
1,200 |
500 |
| FDS-70 |
7.0 |
10.00 |
3.5 |
3,000 |
1,500 |
6,500 |
1,200 |
500 |
| FDS-80 |
8.0 |
12.00 |
4.0 |
3,200 |
1,500 |
6,500 |
1,200 |
500 |
