PRODUCT

GLASSLINED EQUIPMENT

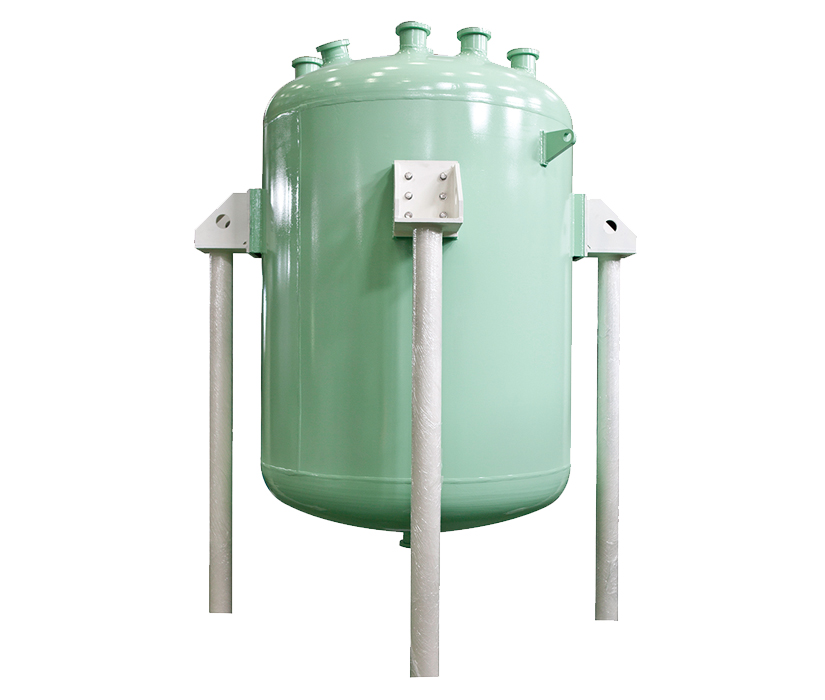

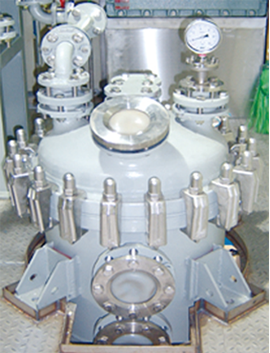

STORAGE TANK


Suitable for solvent storage of corrosive, adhesive and hazardous substances.
Jackets can be attached when heating, cooling, etc. are required.

SPECIFICATION

- Type : Vertical / Horizontal
- Capacity : 50Ltrs. ~ 60,000 Ltrs.

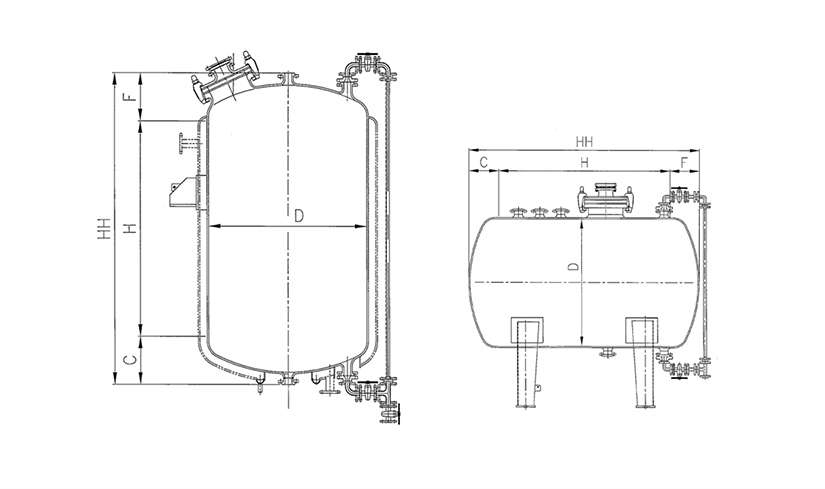

Construction

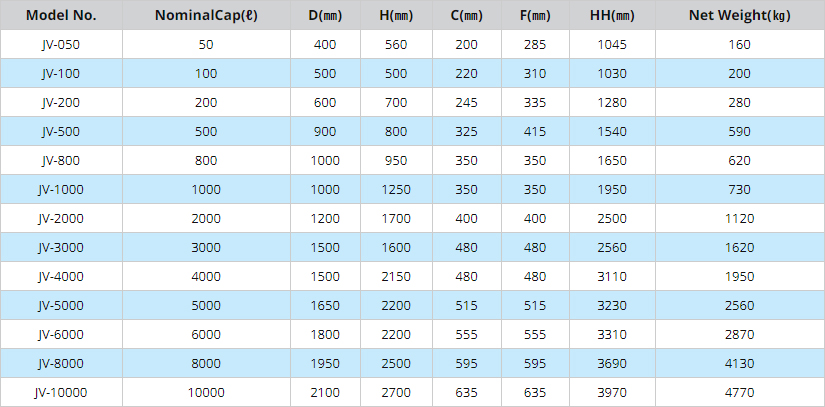

VERTICAL



Model No. NominalCap(ℓ) D(㎜) H(㎜) C(㎜) F(㎜) HH(㎜) Net Weight(㎏)
JV-050 50 400 560 200 285 1045 160
JV-100 100 500 500 220 310 1030 200
JV-200 200 600 700 245 335 1280 280
JV-500 500 900 800 325 415 1540 590
JV-800 800 1000 950 350 350 1650 620
JV-1000 1000 1000 1250 350 350 1950 730
JV-2000 2000 1200 1700 400 400 2500 1120
JV-3000 3000 1500 1600 480 480 2560 1620
JV-4000 4000 1500 2150 480 480 3110 1950
JV-5000 5000 1650 2200 515 515 3230 2560
JV-6000 6000 1800 2200 555 555 3310 2870
JV-8000 8000 1950 2500 595 595 3690 4130
JV-10000 10000 2100 2700 635 635 3970 4770

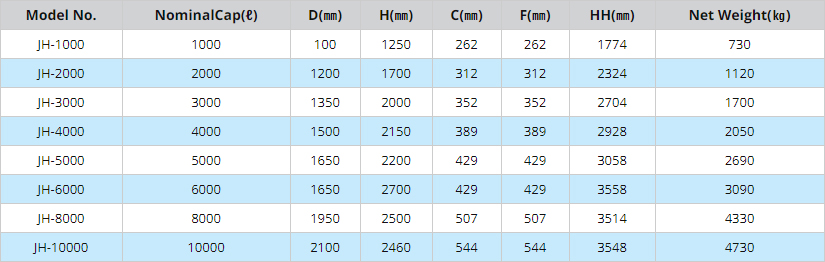

HORIZONTALL



Model No. NominalCap(ℓ) D(㎜) H(㎜) C(㎜) F(㎜) HH(㎜) Net Weight(㎏)
JH-1000 1000 100 1250 262 262 1774 730
JH-2000 2000 1200 1700 312 312 2324 1120
JH-3000 3000 1350 2000 352 352 2704 1700
JH-4000 4000 1500 2150 389 389 2928 2050
JH-5000 5000 1650 2200 429 429 3058 2690
JH-6000 6000 1650 2700 429 429 3558 3090
JH-8000 8000 1950 2500 507 507 3514 4330
JH-10000 10000 2100 2460 544 544 3548 4730
