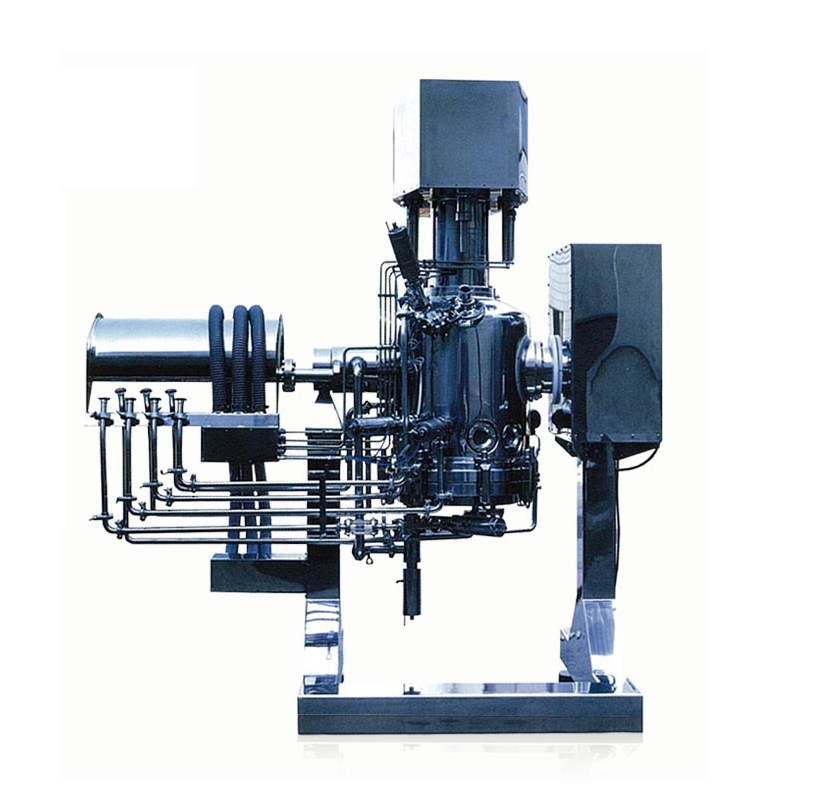

Filter Dryer B
The Filter Dryer can perform simultaneously two processes of filtration and cake drying without transferring product to the other equipment.
It consists of a heated agitator, bottom and body and uses vacuum and pressure during the filtration process. Optional specifications include dust filters, vacuum pumps and solvent recovery systems, suitable for process of handling sensitive products or for drying very low residual humidity products.
Suitable for the process of handling sensitive products or for the drying of very low residual humidity products.
Features
- Reaction, filtration, extraction, drying, cleaning and sterilization can be performed on their own.
- With specially designed impeller, it has excellent stirring ability.
- Angle adjustment is possible for optimizing the reaction, filtration, drying, and extraction. CIP/SIP System (Sterilization)
Application
- Pharmaceutical
- Chemical
- Fine Chemicals
- Etc.

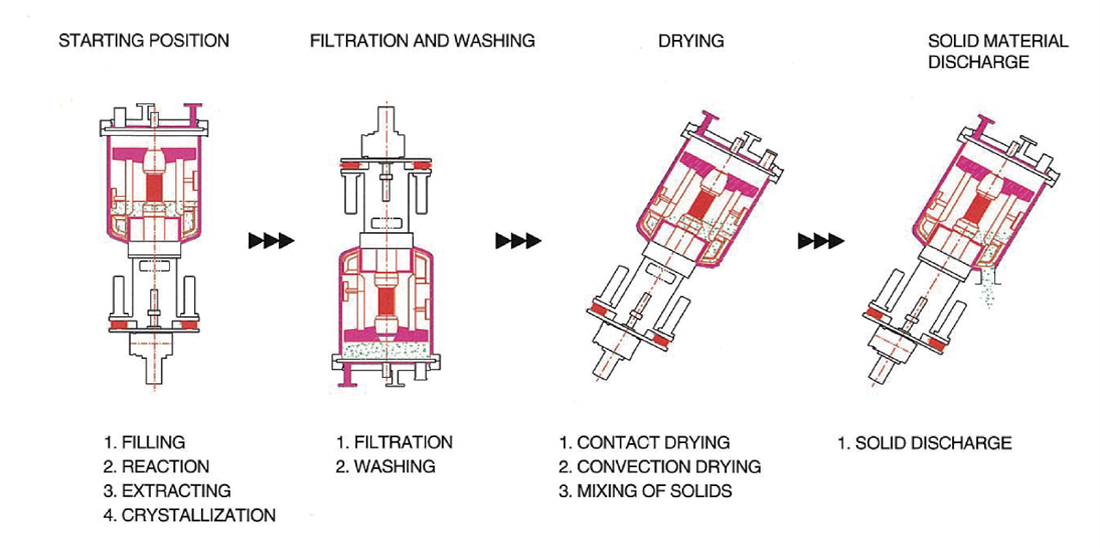

Function

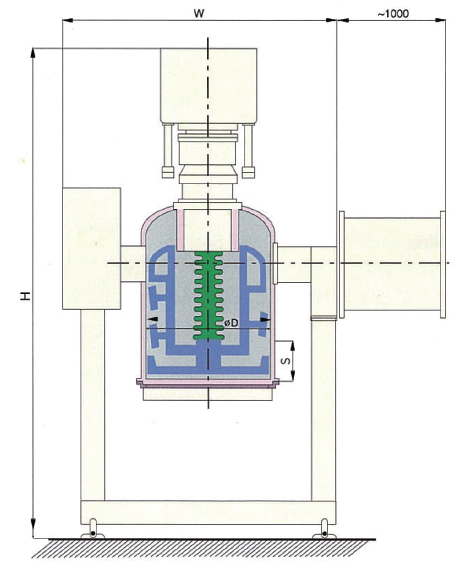

Construction

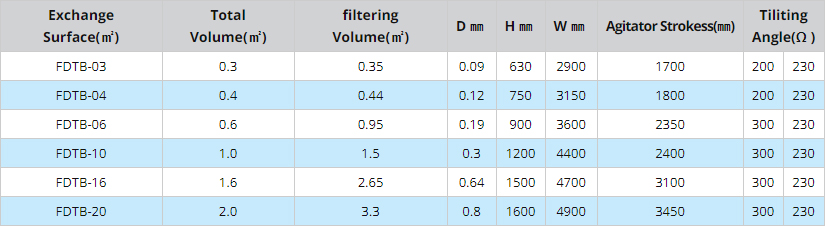

| Exchange Surface(㎡) |
Total Volume(㎡) |
filtering Volume(㎡) |
D ㎜ |
H ㎜ |
W ㎜ |
Agitator Strokess(㎜) |
Tiliting
Angle(Ω ) |
| FDTB-03 |
0.3 |
0.35 |
0.09 |
630 |
2900 |
1700 |
200 |
230 |
| FDTB-04 |
0.4 |
0.44 |
0.12 |
750 |
3150 |
1800 |
200 |
230 |
| FDTB-06 |
0.6 |
0.95 |
0.19 |
900 |
3600 |
2350 |
300 |
230 |
| FDTB-10 |
1.0 |
1.5 |
0.3 |
1200 |
4400 |
2400 |
300 |
230 |
| FDTB-16 |
1.6 |
2.65 |
0.64 |
1500 |
4700 |
3100 |
300 |
230 |
| FDTB-20 |
2.0 |
3.3 |
0.8 |
1600 |
4900 |
3450 |
300 |
230 |
