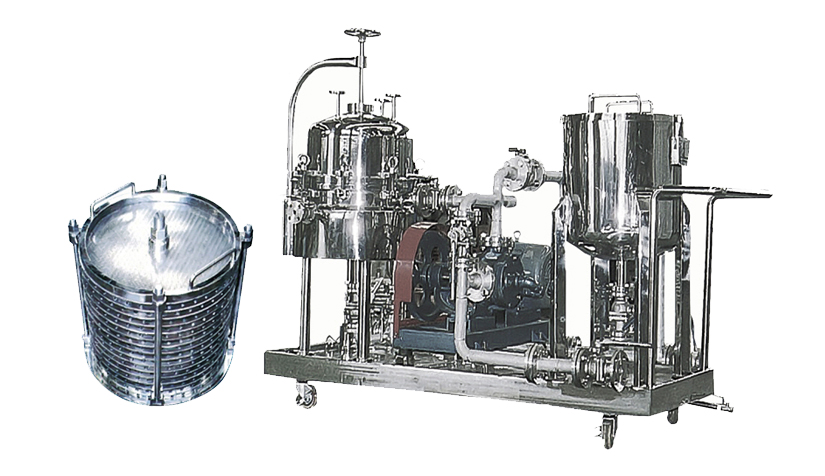

It can be used for multi-purpose and design is simple to disassemble and assemble, making it easier to use.
Easy to replace filteration media and suitable for filtering out diatom and active carbon using filter auxiliary materials such as cloth, paper and cellulose plate.
- It can filter particles up to 1μm, allowing clear and transparent filtration.
- Cleaning devices can be fitted to remove all waste solvents.
- Cakes can be dried with compressed air, inert gas, steam, etc.
- No work stop due to the reflux of liquid during the process, so full filtration is possible and can save time and cost.
- No need to open the filter to clean it every time.
- Back washing facility can be supplied for continuous operation.
- After filtration of toxins, hazardous and explosive liquids, the cake is separated from the outside and sealed
- No external contamination on the inside surface of the filter
- Pharmaceutical
- Chemical
- Food Processing
- Beverages
- Distilleries
- Oil, Sugar, Dairy
- Ink, Cosmetics, Resin, Varnish
- Laquer, Paint & Other Allied Industries

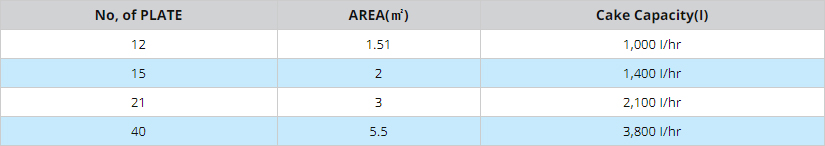

| No, of PLATE | AREA(㎡) | Cake Capacity(I) |
| 12 | 1.51 | 1,000 I/hr |
| 15 | 2 | 1,400 I/hr |
| 21 | 3 | 2,100 I/hr |
| 40 | 5.5 | 3,800 I/hr |
JUNGHYUN PLANT Provides also Creative Technology for the best productivity.
