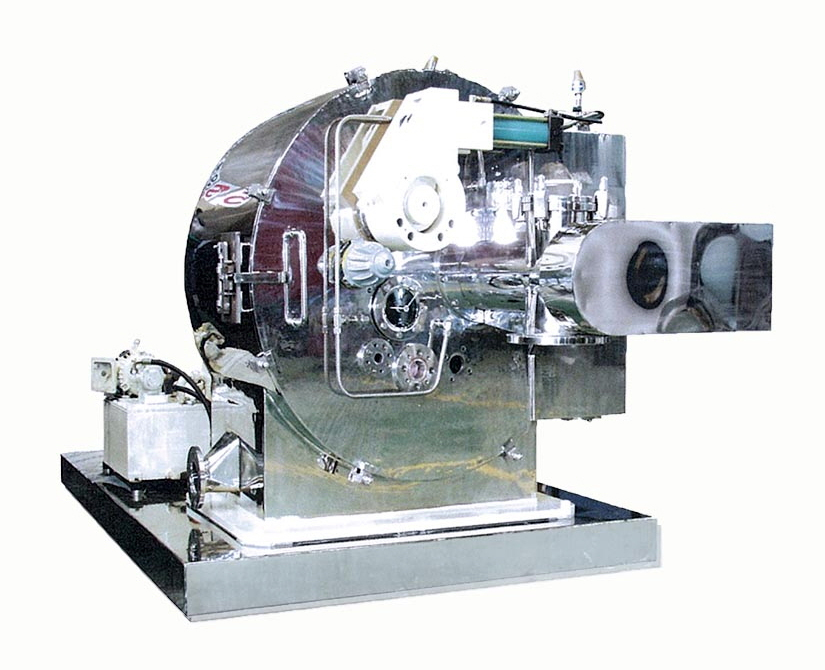

Designed for non-continuous filtration by centrifugal filtration.
In the pharmaceutical industry, the process is designed to be carried out with the various products.
Production outlet consists of totally closed discharge chute and screw conveyor with a fully sealed string and ensures high quality.

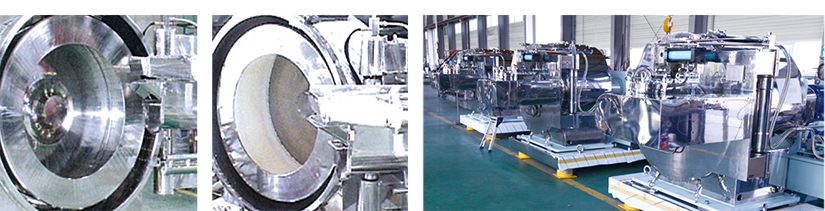

Side doors are highly accessible for optimum visual inspection.
- Automatic slope adjustment for cake discharge
- Automatic CIP system
- Automatic residual cake removal system
- Closed structure that completely blocks external contamination
- Pharmaceutical
- Chemical

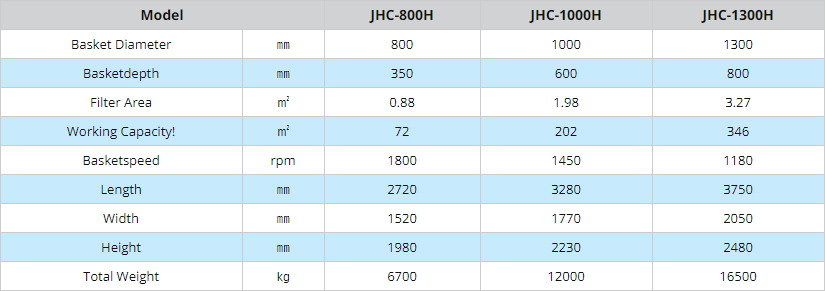

| Model | JHC-800H | JHC-1000H | JHC-1300H | |
| Basket Diameter | ㎜ | 800 | 1000 | 1300 |
| Basketdepth | ㎜ | 350 | 600 | 800 |
| Filter Area | ㎡ | 0.88 | 1.98 | 3.27 |
| Working Capacity! | ㎡ | 72 | 202 | 346 |
| Basketspeed | rpm | 1800 | 1450 | 1180 |
| Length | ㎜ | 2720 | 3280 | 3750 |
| Width | ㎜ | 1520 | 1770 | 2050 |
| Height | ㎜ | 1980 | 2230 | 2480 |
| Total Weight | ㎏ | 6700 | 12000 | 16500 |
