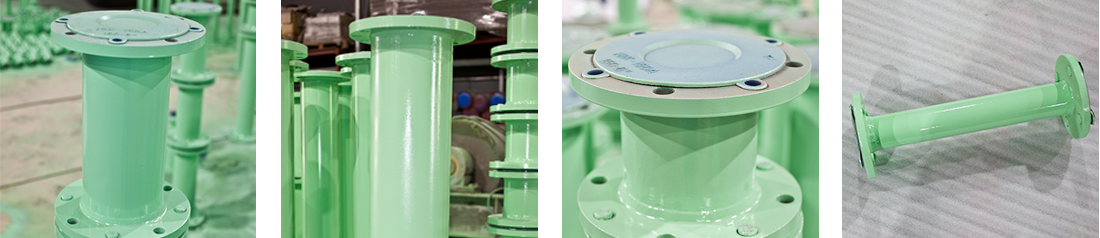

Glass material is fused inside the Carbon Steel Pipe at high temperature and available in high-pressure vacuum conditions and suitable for transfer of an acid/alkali-resistance solution. It has the advantage of maintaining the high purity of the content.

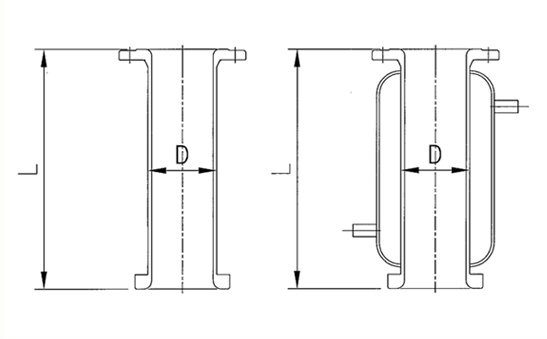

Straight pipes can be made in a double jacket type and can used as pipe lines for heat exchanger.

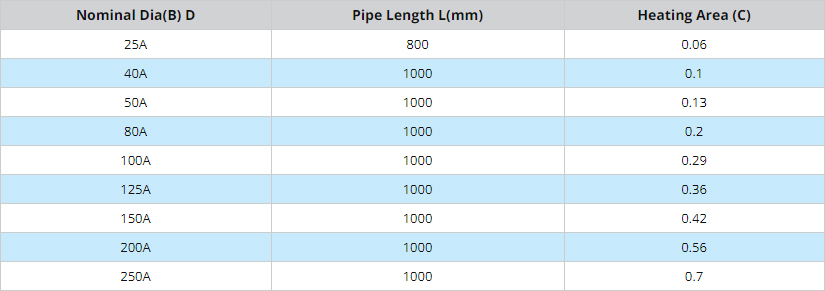

| Nominal Dia(B) D | Pipe Length L(mm) | Heating Area (С) |
| 25A | 800 | 0.06 |
| 40A | 1000 | 0.1 |
| 50A | 1000 | 0.13 |
| 80A | 1000 | 0.2 |
| 100A | 1000 | 0.29 |
| 125A | 1000 | 0.36 |
| 150A | 1000 | 0.42 |
| 200A | 1000 | 0.56 |
| 250A | 1000 | 0.7 |

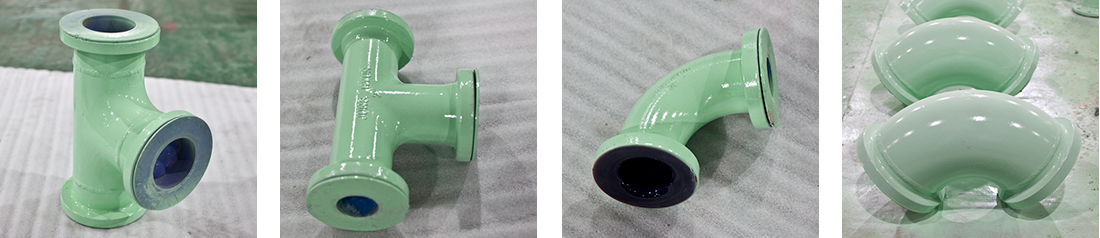

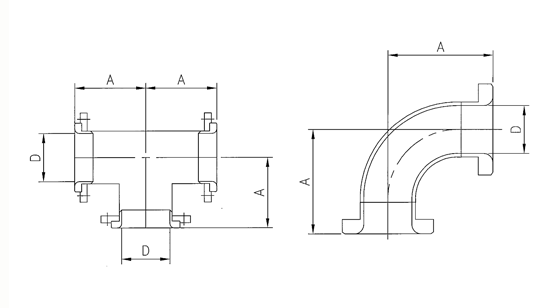

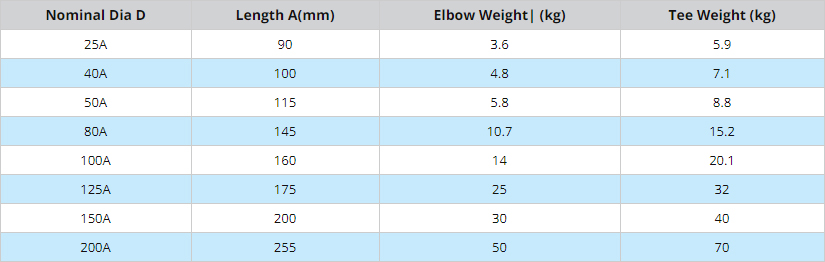

| Nominal Dia D | Length A(mm) | Elbow Weight| (kg) | Tee Weight (kg) |
| 25A | 90 | 3.6 | 5.9 |
| 40A | 100 | 4.8 | 7.1 |
| 50A | 115 | 5.8 | 8.8 |
| 80A | 145 | 10.7 | 15.2 |
| 100A | 160 | 14 | 20.1 |
| 125A | 175 | 25 | 32 |
| 150A | 200 | 30 | 40 |
| 200A | 255 | 50 | 70 |

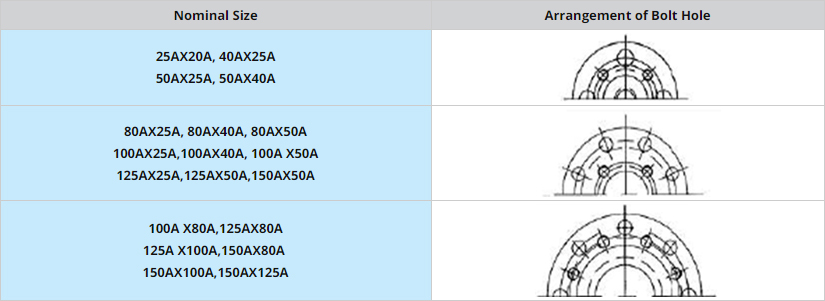

| Nominal Size | Arrangement of Bolt Hole |
|
25AX20A, 40AX25A 50AX25A, 50AX40A |
|
|
80AX25A, 80AX40A, 80AX50A 100AX25A,100AX40A, 100A X50A 125AX25A,125AX50A,150AX50A |
|
|
100A X80A,125AX80A 125A X100A,150AX80A 150AX100A,150AX125A |
|

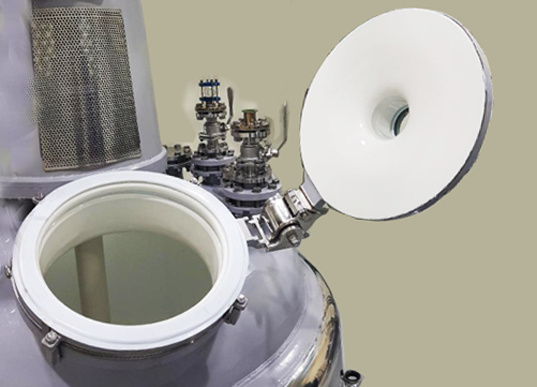

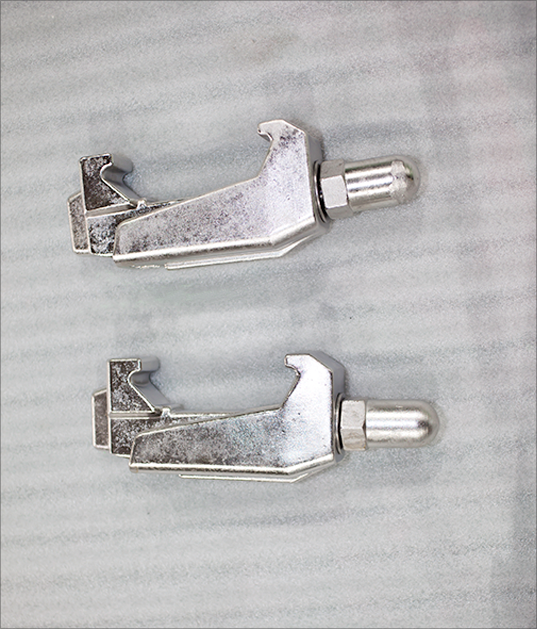

Easy open & close by spring force and simple installation to the existing equipment.
JUNGHYUN PLANT Provides also Creative Technology for the best productivity.
