GLASSLINED EQUIPMENT


CONDENSER(HEAT EXCHANGER)


The Glass Lined Condenser (heat exchanger) is consisted of triple-tube-structure and designed to increase the flow rate when the cooling medium reaches the heating/cooling area.
That is, the thermal conductivity of the bulkhead structure layer is increased by decreasing the value of the thermal conductivity coefficient.
Unique & Special Design / Guarantee no contamination / 0% Defect Repair



VERTICAL

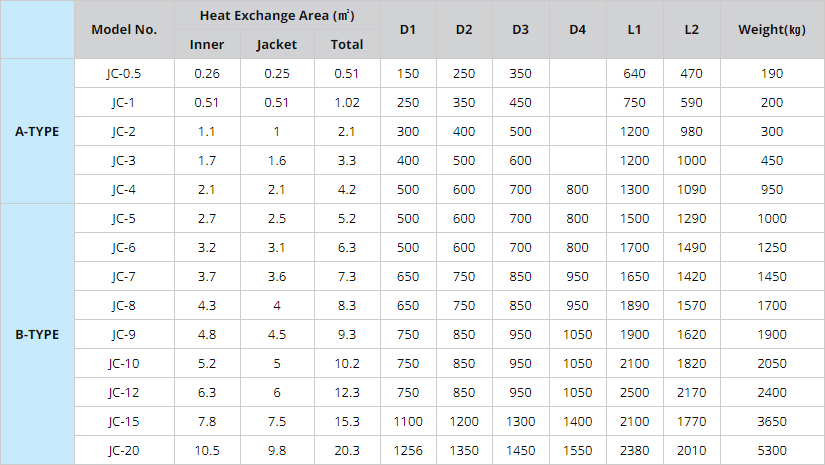

Model No. Heat Exchange Area (㎡) D1 D2 D3 D4 L1 L2 Weight(㎏)
Inner Jacket Total
A-TYPE JC-0.5 0.26 0.25 0.51 150 250 350 640 470 190
JC-1 0.51 0.51 1.02 250 350 450 750 590 200
JC-2 1.1 1 2.1 300 400 500 1200 980 300
JC-3 1.7 1.6 3.3 400 500 600 1200 1000 450
JC-4 2.1 2.1 4.2 500 600 700 800 1300 1090 950
B-TYPE JC-5 2.7 2.5 5.2 500 600 700 800 1500 1290 1000
JC-6 3.2 3.1 6.3 500 600 700 800 1700 1490 1250
JC-7 3.7 3.6 7.3 650 750 850 950 1650 1420 1450
JC-8 4.3 4 8.3 650 750 850 950 1890 1570 1700
JC-9 4.8 4.5 9.3 750 850 950 1050 1900 1620 1900
JC-10 5.2 5 10.2 750 850 950 1050 2100 1820 2050
JC-12 6.3 6 12.3 750 850 950 1050 2500 2170 2400
JC-15 7.8 7.5 15.3 1100 1200 1300 1400 2100 1770 3650
JC-20 10.5 9.8 20.3 1256 1350 1450 1550 2380 2010 5300

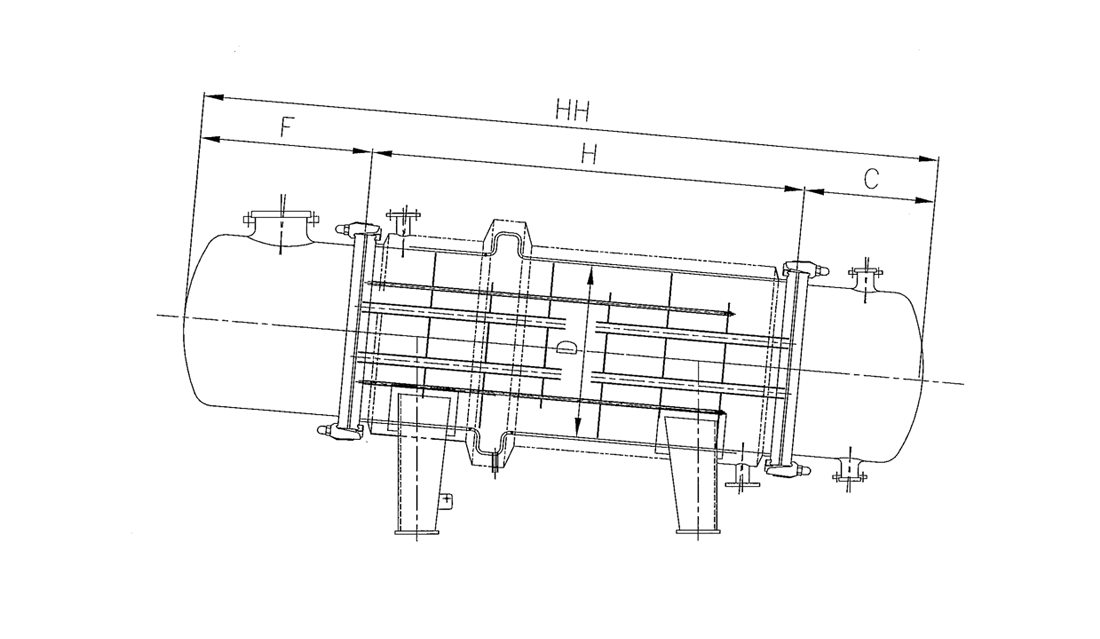

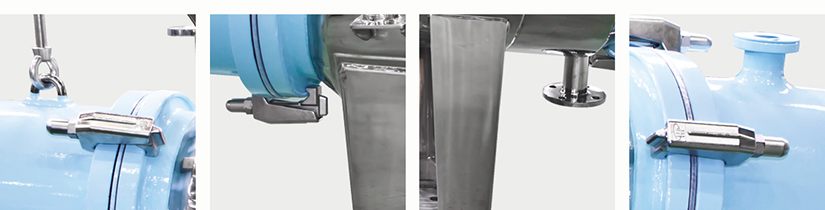

HORIZONTALL

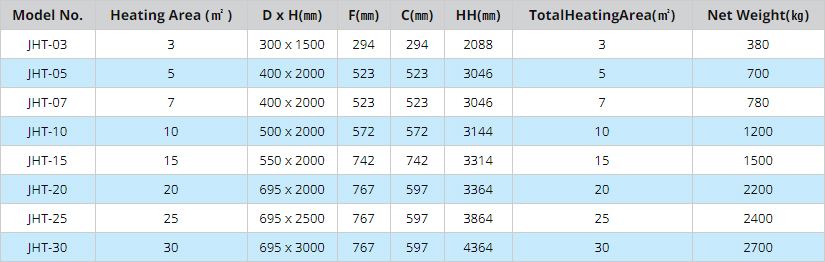

Model No. Heating Area (㎡ ) D x H(㎜) F(㎜) C(㎜) HH(㎜) TotalHeatingArea(㎡) Net Weight(㎏)
JHT-03 3 300 x 1500 294 294 2088 3 380
JHT-05 5 400 x 2000 523 523 3046 5 700
JHT-07 7 400 x 2000 523 523 3046 7 780
JHT-10 10 500 x 2000 572 572 3144 10 1200
JHT-15 15 550 x 2000 742 742 3314 15 1500
JHT-20 20 695 x 2000 767 597 3364 20 2200
JHT-25 25 695 x 2500 767 597 3864 25 2400
JHT-30 30 695 x 3000 767 597 4364 30 2700
